100KWh Optical Storage Integrated Machine IP54 Protection Level

Name: 100KWh Optical Storage Integrated Machine IP54 Protection Level
Brand: kimoems or OEM
Price: 1 USD

Brand Name : kimoems or OEM

Place of Origin : China

Payment Terms : T/T

Photovoltaic Maximum input power : 50kW

Photovoltaic Starting voltage : 200V

Photovoltaic Maximum photovoltaic voltage : 1000Vdc

Photovoltaic Photovoltaic rated voltage : 630Vdc

Photovoltaic MPPT operating voltage range : 200-850Vdc

Photovoltaic MPPT quantity : 4

Photovoltaic Number of single MPPT input channels : 2

Energy Storage Rated energy : 103.68kWh

Energy Storage Rated capacity : 150Ah

Energy Storage Rated voltage : 691.2Vdc

Energy Storage Battery voltage range : 604.8~777.6Vdc

Energy Storage Rated charge/discharge current : 75A

Energy Storage Maximum charge/discharge current : 90A

Protection level : IP54

Communication mode : RS485, Ethernet, 4G

Contact Now

100KWh Optical Storage Integrated Machine IP54 Protection Level

103.6KWH
Standard design, portable and mobile

Multidimensional perception, multi-level security protectionInternal integration of photovoltaic/energy storage/PCS equipment, More unified bus control to improve system stability
Standardized design, easy parallel expansion
New A-grade lithium iron phosphate battery cell

2-year warranty for the whole machine and 5-year warranty for the battery cells

Control system, with remote/local monitoring

Support WlFl 4G remote monitoring

Parameter	Value	Value
Photovoltaic Parameters	Maximum input power [kW]	50
	Starting voltage [V]	200
	Maximum photovoltaic voltage [Vdc]	1000
	Photovoltaic rated voltage [Vdc]	630
	MPPT operating voltage range [Vdc]	200~850
	MPPT quantity	4
	Number of single MPPT input channels	2
	Maximum input current [A]	30*4
	Maximum short-circuit current [A]	40*4
Energy Storage Parameters	Rated energy [kWh]	103.68
	Rated capacity [Ah]	150
	Rated voltage [Vdc]	691.2
	Battery voltage range [Vdc]	604.8~777.6
	Rated charge/discharge current [A]	75
	Maximum charge/discharge current [A]	90
Communicate Output Parameters	Rated output power [kW]	50
	Maximum input apparent power [kVA]	50
	Maximum apparent power output for grid connection [kVA]	50
	Off grid maximum apparent power output [kVA]	50
	Maximum output current [A]	75
	Rated voltage (input and output)	3L/N/PE; 380V
	Grid frequency [Hz]	50/60
	Voltage total harmonic distortion	<3%@Rated power&linear load
	Maximum efficiency of inverter	98.4%
General Parameters	Weight [kg]	1450

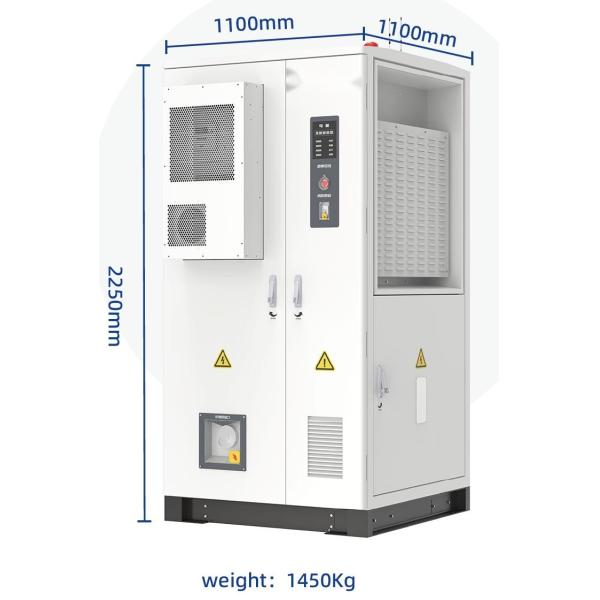

	Dimensions (width * depth * height) [mm]	110011002250
	Communication mode	RS485, Ethernet, 4G
	Working temperature [°C]	-20~50 (Derating above 45°C)
	Storage temperature [°C]	-20~45
	Relative humidity	5~95%, No condensation
	Altitude [m]	3000m (>3000m Derating)
	Heat dissipation method	Intelligent air conditioning & intelligent fan
	Protection level	IP54
